Tray Sealer

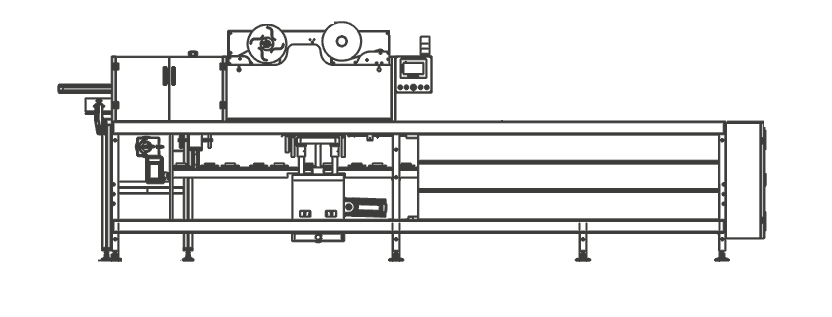

Bph-S Lineer
This is a new generation compact type machine with high efficiency. It has been manufactured to suit small to medium sized operations as well as a wide range of products.
With the use of different software’s within its program, the BPH-S-2 LINEER offers easy application of recipes to different products accordingly. It is therefore possible to seal different products in the same packets using a single operation through adjustment of settings.
Technical Features
Full Automatic Tray Sealer (Cup Filling) Machine
| Number of Packet | 1x1 to 1x6 |
| Depth | max. 200mm |
| Reel Diameter | 300mm |
| Reel Core Diameter | 76mm |
| Capacity | 8 - 14 cycles/min. |
| Compressed Air | 6 bar, max. 1.500 L/min. |
| Cooling Water | 12-16˚C, 4.000 kcal/h. |
| Electrical Consumption | 10 - 15 KW - 380 V |
| Convenience Cup | (PP), (PVC+PE) |
| Lid Film | (PA+PE), (AL+OPP) |
| Machine Dimensions | 7.000 x 3.000 x 400mm (approx) |
| Weight | max. 1.500kg |
